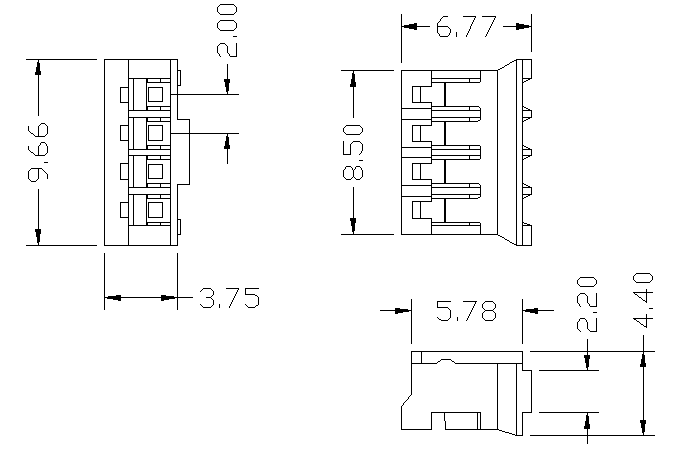

  • 产品名称:PH-4Y
  • 产品编号:094
  • 上架时间:2020-08-01 13:40:56
  • 浏览次数: 1850

    技术参数

    线数(Poles):2~13

    适用线规(Applicable wires):AWG30#~24#

    适用基板厚度(Applicable PC board thickness):1.6mm

    温度范围(Temperature range):-25℃~85℃

    额定电压(Voltage rating):250V.Ac/Dc

    额定电流(Current rating):2A

    接触电阻(Contact resistance):≤0.02Ω

    绝缘电阻(Insulation resistance):≥1000MΩ

    耐压(Withstand voltage):800V.Ac/1min
